50km MIMO Broadband IP Poindi kune Multi-Point Data Link Featured Image

50km MIMO Broadband IP Point kune Multi-Point Data Link

Muenzaniso: FDM-605PTM

FDM-605PTM ipoindi kune akawanda-point network bhodhi yeakareba renji vhidhiyo uye data downlink kusvika pasi. Inotsigira akawanda transmitters mumhepo kutumira HD vhidhiyo uye TTL data kune imwe inogamuchira pasi. Iyo yakakosha yakagadzirirwa yakagadziriswa bapiro drone / helikopta / Mota vhidhiyo downlink ye50km panguva yekukurumidza kufamba.

Smart antenna MIMO inoita FDM-605PTM inopa chaiyo-nguva HD vhidhiyo uye Broadband Ethernet yekubatanidza ine 30Mbps yekufambisa mwero. Iyo yakakosha kune isina waya kutaurirana mune yakakosha yakavanzika network.

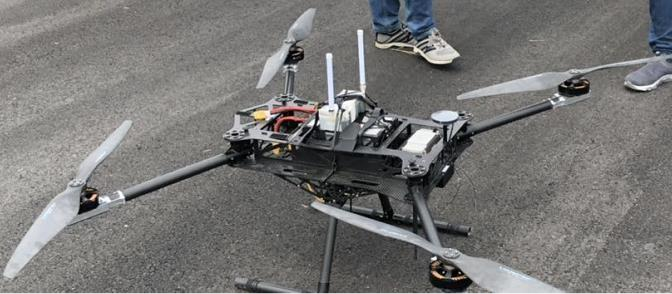

Iyo ine mabhenefiti makuru mukushandiswa kweVTOL/yakagadziriswa bapiro drone/herikoputa isina waya yekufambisa ine huremu hwe280g chete.

Iyo inouya mu10W uye 20W vhezheni yekugadzira yakavanzika yekutaurirana link yeUAV swarm kupfuura mutsara wekuona munzvimbo dzakaoma dzeRF.

Bvunza

Product Detail

Features

Yakareba Range HD Vhidhiyo Kukurukuriranauye low latency

Inopa 50km mhepo kusvika pasi yakazara HD vhidhiyo downlink ine bi-directional data transmission yeVTOL/fixed wing drone/helicopter.

Inoratidzira isingasviki 60ms-80msof latency ye150km, kuitira kuti iwe ugone kuona uye kutonga zviri kuitika live.

Automatic Power Control

Simba rekutumira reimwe node rinongogadziriswa uye rinodzorwa zvinoenderana nemhando yayo yechiratidzo.

Frequency-Hopping Spread Spectrum (FHSS)

IWAVE IP MESH chigadzirwa chichaverengera mukati uye kuongorora chinongedzo chazvino zvichibva pazvinhu zvakaita seyakagamuchira chiratidzo chesimba RSRP, chiratidzo-ku-ruzha chiyero SNR, uye bit kukanganisa mwero SER. Kana mamiriro ayo ekutonga asangana, ichaita frequency hopping uye sarudza yakakwana frequency point kubva pane iyo rondedzero.

Kuti kuita frequency hopping kunoenderana newireless state. Kana iyo isina waya mamiriro akanaka, frequency hopping haizoitwe kusvika mamiriro ekutonga asangana.

Automatic Frequency Point Control

Mushure mekubhoti, ichaedza kunetiweki neasati achengetwa frequency mapoinzi pamberi pekupedzisira kudzima. Kana iyo pre-yakachengetwa frequency mapoinzi isina kukodzera kutumirwa kwetiweki, inoedza otomatiki kushandisa mamwe anowanikwa frequency mapoinzi ekutumirwa kwetiweki.

▪ Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz

▪ Kutumira Simba: 33dBm

▪ Tsigira 800Mhz/1.4Ghz frequency sarudzo

▪ Mhepo ichienda pasi makiromita makumi mashanu

▪ NLOS 1km-5km pasi kusvika pasi

▪ Kudzora magetsi otomatiki

▪ Automatic frequency point control

▪ Kukurukurirana kweEthernet kuburikidza neJ30 interface

▪ RS232 kutaurirana kuburikidza neJ30 interface

Dimension uye Weight

W: 190g

D: 116*70*17mm

UAV vhidhiyo Transceiver inopindirana nyowani

Application

• Nongedza kune multiple-point-refu yekukurukurirana

•Simba uye hydrological line patrol yekutarisa

•Emergency communications yekudzima moto, bhodha kudzivirira, nemauto

•Maritime kutaurirana, Digital oilfield, Fleet kuumbwa

Tsanangudzo

GENERAL		MACHANICAL
TECHNOLOGY	Wireless yakavakirwa paTD-LTE Access Technology	TEMPERATURE	-20º kusvika +55ºC
ENCREPTION	ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption	DIMENSIONS	1167017mm
DATE RATE	30Mbps	UREMBO	100g
KUNZWISISA	-103dBm	UREMBO	100g
RANGE	50km (Mhepo kusvika pasi)	MATERIAL	Silver Anodized Aluminium
MODE	Nongedza kune-multi-point	KUKWEDZA	Onboard
MIMO	2x2 MIMO	SIMBA
MODULATION	QPSK, 16QAM, 64QAM	SIMBA
RF SIMBA	33dbm	VOLTAGE	DC 12V
LATENCY	Kupera kusvika KUPEDZA: 60ms-80ms	KUDYA SIMBA	11watts
ANTI-JAM	Otomatiki frequency hopping
FREQUENCY		INTERFACES
1.4Ghz	1427.9-1447.9MHz	RF	2 x SMA
800Mhz	806-826 MHz	ETHERNET	1xJ30
2.4Ghz	2401.5-2481.5 MHz	ETHERNET	1xJ30
		PWER INPUT	1xJ30
		Nhoroondo ye TTL	1xJ30
		Debug	1xJ30

COMUART
Chiyero cheMagetsi	3.3V uye inoenderana ne2.85V
Kudzora Data	RS232
Baud rate	115200bps
Transmission Mode	Pass-through mode
Chinonyanya kukosha	Yakanyanya kukosha kupfuura network portKana iyo chiratidzo chekufambisa ichirira, iyo data yekudzora inofambiswa pamberi.
Cherechedza: 1. Iyo data kutumira uye kugamuchira inotepfenyurwa mune network. Mushure mekubudirira kushamwaridzana, imwe neimwe FDM-605PTM unit inogona kugamuchira serial data. 2. Kana iwe uchida kusiyanisa pakati pekutumira, kugamuchira uye kutonga, unoda kutsanangura chimiro iwe pachako
