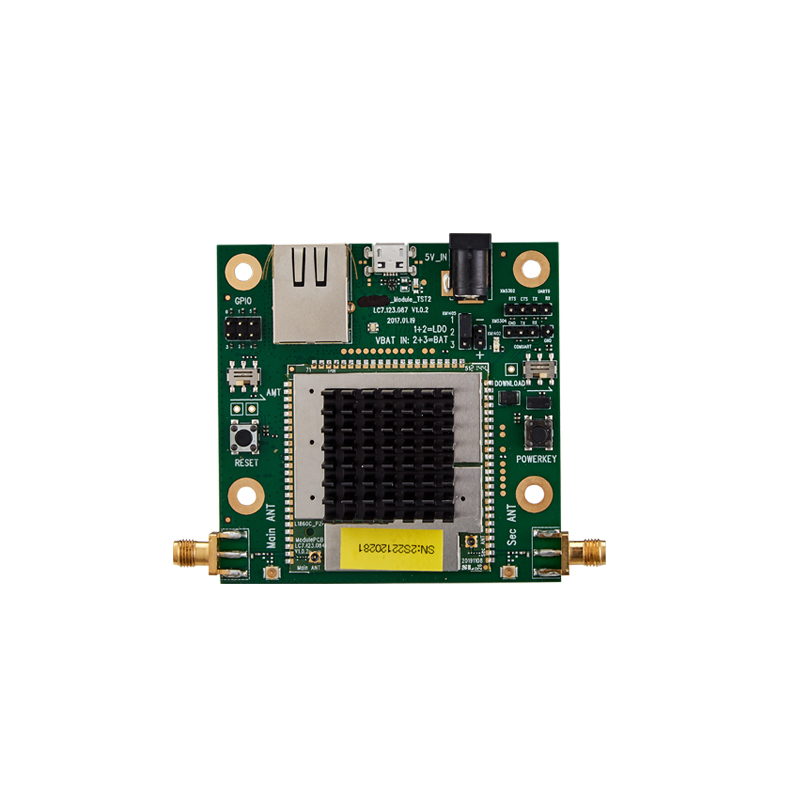

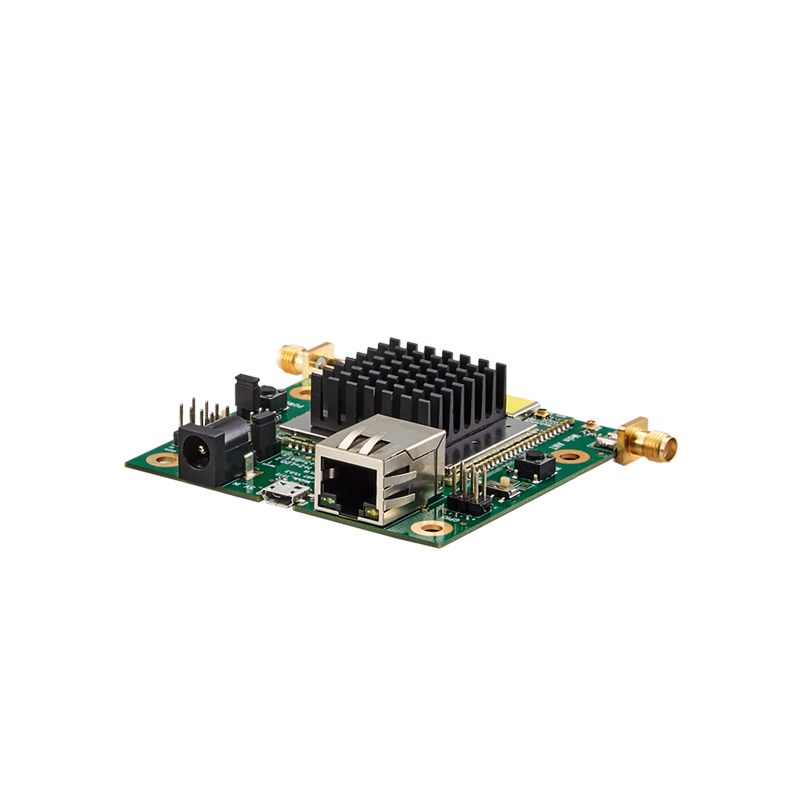

When your mobile unmanned vehicle venture into rough terrain, a strong and powerful non line of sight communication radio link is the key to keep the robotics connected with control center. The IWAVE FD-6100 miniature OEM Tri-Band digital ip PCB solution is a mission-critical radio for integration into third-party equipment. It is designed to overcome the challenges your autonomous systems face and help you extend the communication range.
Let's explore why FD-6100 BVLOS communications coverage is expanded and larger than the other similar products on the market, and learn how the latest IWAVE radio brings unparalleled communication power to your operation.
High sensitivity -103dbm@10Mhz
With a remarkable -103dBm sensitivity at 10Mhz bandwidth, the FD-6100 maintains communication even in challenging environments with weaker signals or with interference. Whether deep within concrete buildings or mountainous areas, FD-6100's outstanding sensitivity helps your autonomous unmanned ground vehicles stay connected even at the edge of system’s coverage. The following is sensitivity table with different frequency based on our practical testing result.
| Receiver Sensitivity(Access state) | Sensitivity(BLER≤3%)(Data transmission state) | |||||||
| 1.4GHZ | 20Mhz | -100dBm | 1.4Ghz | 10MHz | -91dBm(10Mbps) | 2.4Ghz | 20Mhz | -94dBm(10Mbps) |
| 10MHZ | -103dBm | 10MHz | -96dBm(5Mbps) | 20Mhz | -97dBm(5Mbps) | |||
| 5MHZ | -104dBm | 5MHz | -82dBm(10Mbps) | 10Mhz | -91dBm(10Mbps) | |||
| 3MHZ | -106dBm | 5MHz | -91dBm(5Mbps) | 10Mhz | -96dBm(5Mbps) | |||
| 800MHZ | 20Mhz | -100dBm | 3MHz | -86dBm(5Mbps) | 5Mhz | -84dBm(10Mbps) | ||
| 10MHZ | -103dBm | 3MHz | -97dBm(2Mbps) | 5Mhz | -93dBm(5Mbps) | |||
| 5MHZ | -104dBm | 2MHz | -84dBm(2Mbps) | 3Mhz | -87dBm(5Mbps) | |||
| 3MHZ | -106dBm | 800Mhz | 10MHz | -91dBm(10Mbps) | 3Mhz | -98dBm(2Mbps) | ||
| 2.4GHZ | 20Mhz | -99dBm | 10MHz | -97dBm(5Mbps) | 1.4Ghz | -84dBm(2Mbps) | ||
| 10MHZ | -103dBm | 5MHz | -84dBm(10Mbps) | |||||
| 5MHZ | -104dBm | 5MHz | -94dBm(5Mbps) | |||||
| 3MHZ | -106dBm | 3MHz | -87dBm(5Mbps) | |||||
| 3MHz | -98dBm(2Mbps) | |||||||
| 2MHz | -84dBm(2Mbps) | |||||||
Anti-multipath interference algorithm
Multipath interference caused by signal reflections from high buildings, complex terrains, or other obstacles can impede effective communication. IWAVE FD-6100 adopts advanced anti-multipath interference algorithm to ensure seamless and stable transmission of video and data, no matter how challenging the environmental is. By minimizing the impact of multipath interference, this robust IP MESH radio provides a reliable and high throughput communication, making it the first choice for various autonomous unmanned systems such as the tactical robot, fire-fighting robot, all-terrain vehicle, etc.
Frequency Hopping Spread Sprectrum(FHSS)
FD-6100 supports frequency hopping. And it hops 100hops per second.
The FHHS frequency hopping is determined by the built-in algorithm. The algorithm will select an optimal frequency point based on the real time interference situation and then execute the FHSS to hop to that optimal frequency point to make the wireless communication link free of interference during working.
Self-forming and self-healing MESH networking

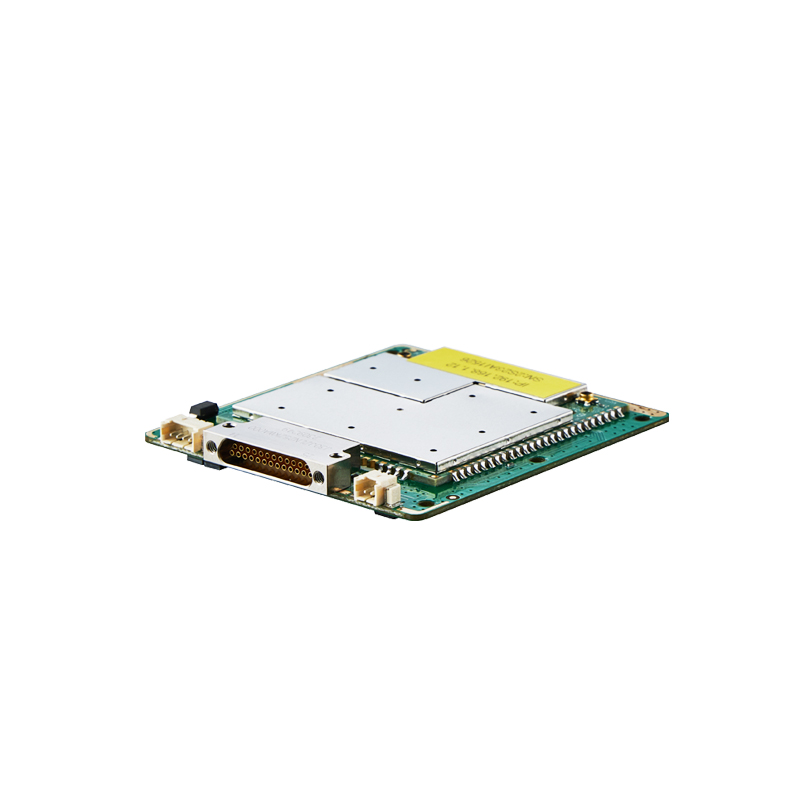

When robots perform complex tasks such as carry multiple video streaming from a mobile robot (unmanned ground vehicle, or UGV) back to a control station, which require a high band width communication link. However if the communication links only works line-of-sight, often limiting the flexibility of the robot’s movement. FD-6100 is a MESH network robot-mountable module. You can deploy multiple relay nodes to relay the network when and where needed to extend the communication coverage.
FD-6100 will make a comprehensive judgment based on the signal quality between adjacent nodes and the optimal routing algorithm, then select the best path to transmit the video and data.
Tri-band Frequency
Connected with an tri-band antenna, FD-6100 can hop the frequency cross band from 1.4Ghz to 800Mhz to 2.4Ghz for anti-jamming and guarantee the stable and robust wireless link between UGV and control station.

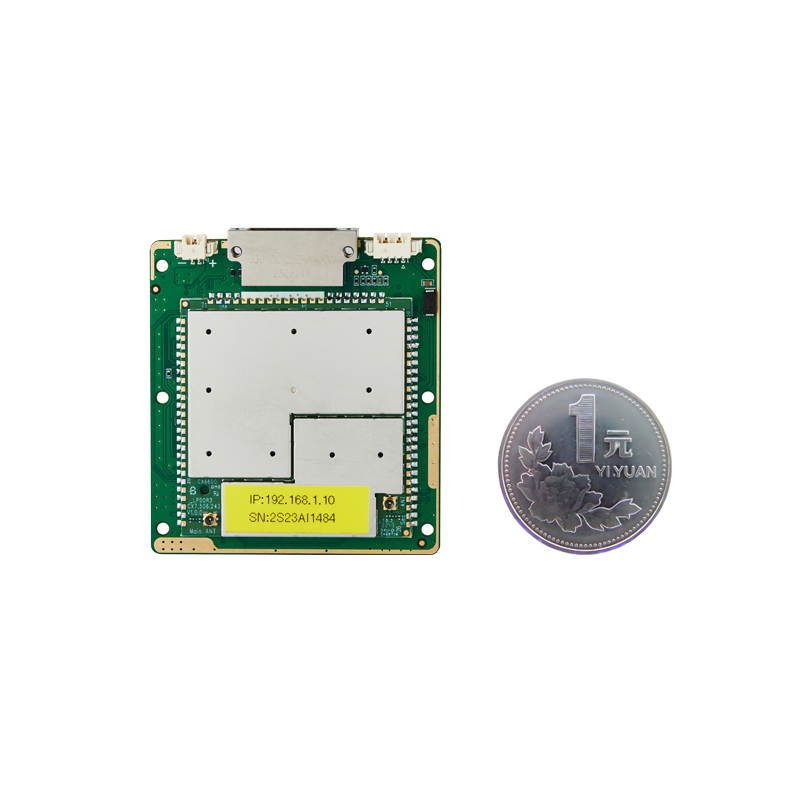

IWAVE FD-6100 small hd wireless video transmitter providing a plug-and-play solution for robotics. With it you can maintain an uninterrupted long distance wireless communication link.
For more detailed information about the FD-6100 MESH radio, please visit the following page:
