Mimo Digital Data Link For Mobile Uavs And Robotics Transmitting Video In Nlos

Model: FDM-6600

FDM-6600 wireless COFDM Digital Video Transmitter offers Video, IP and Data for all your unmanned communications needs.

Strong NLOS ability ground to ground and reach 15km air to ground allows you get a stable and smooth video streaming without stuck. For NLOS communication, it has been applied underground, dense forest, indoor, urban environment with buildings, tunnels and mountains.

FDM-6600 only weighs 50g and is the ideal for size and weight critical UxV applications.

Inquire

Product Detail

Features

Strong NLOS Ability

FDM-6600 is special designed based on TD-LTE technology standard with advanced algorithm to achieve a high sensitivity, which enable a robust wireless link when the signal is weak. So when working in nlos environment, the wireless link is also stable and strong.

Robust Long Range Communication

Up to 15km(air to ground) clear and stable radio signal and 500meters to 3km NLOS(ground to ground) with smooth and full hd video streaming.

High Throughput

Upto 30Mbps(uplink and downlink)

Interference Avoidance

Tri-band frequency 800Mhz, 1.4Ghz and 2.4Ghz for cross-band hopping to avoid interference. For example, if 2.4Ghz is interferenced, it can hop to 1.4Ghz to ensure the good quality connection.

Dynamic Topology

Scalable point to Multipoint networks. One master node supports 32 slaver node. Configurable on web UI and the real time topology will be displayed monitoring all the nodes connection.

Encryption

Advanced encryption technology AES128/256 is built-in to prevent your data link from a unauthorized access.

COMPACT & LIGHTWEIGHT

Only weights 50g and is ideal for UAS/UGV/UMV and other unmanned platforms with strict size, weight, and power (SWaP) constraints.

Application

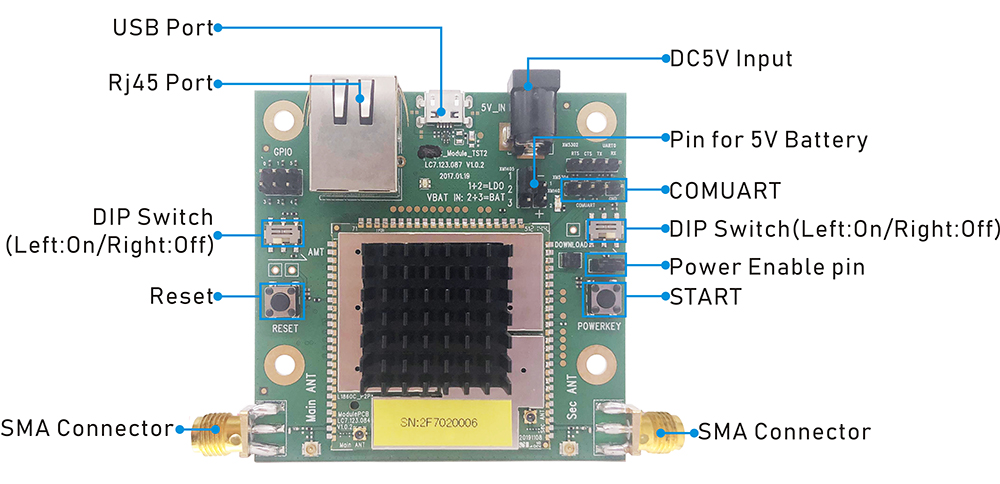

FDM-6600 is an advanced 2×2 MIMO Advanced Wireless Video and Data Links designed with light weight, small size and low power. The tiny module support video and full duplex data communication (e.g. Telemetry) in a single high-speed broadband RF channel, which make it perfect for UAV, autonomous vehicles, and mobile robotics for various industries.

Specification

GENERAL
TECHNOLOGY	Wireless based on TD-LTE Technology Standards
ENCRYPTION	ZUC/SNOW3G/AES(128) OptionalLayer-2
DATA RATE	30Mbps(Uplink and Downlink)
RANGE	10km-15km(Air to ground)500m-3km(NLOS Ground to ground)
CAPACITY	Star Topology, Point to 17-Ppint
POWER	23dBm±2 (2w or 10w on request)
LATENCY	One Hop Transmission≤30ms
MODULATION	QPSK, 16QAM, 64QAM
ANTI-JAM	Automatically Cross-Band frequency hopping
BANDWIDTH	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
POWER CONSUMPTION	5Watts
POWER INPUT	DC5V

SENSITIVITY
2.4GHZ	20MHZ	-99dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
1.4GHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
800MHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm

FREQUENCY BAND
2.4Ghz	2401.5-2481.5 MHz
1.4Ghz	1427.9-1467.9MHz
800Mhz	806-826 MHz

COMUART
Electrical Level	2.85V voltage domain and compatible with 3V/3.3V level
Control Data	TTL mode
Baud rate	115200bps
Transmission Mode	Pass-through mode
Priority level	Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority
Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-6600 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself
