Ip Mesh Oem Digital Data Link For Ugv Wireless Transmitting Video And Control Data

Model: FD-6100

FD-6100 is a miniature Tri-band OEM 800MHz, 1.4Ghz and 2.4Ghz MIMO Digital Data Link.

It is ideal for UAV(Unmanned Aerial Vehicle) and UGV(Unmanned Ground Vehicle) surveillance and video broadcasting, IP Mesh radios provide a proven and flexible MANET solution for the most challenging environments.

It provides a robust and secure link in all the 800MHz, 1.4Ghz and 2.4Ghz frequency band. The FD-6100 adopt FHSS(Frequency Hopping Spread Sprectrum) and high sensitivity base on TD-LTE technology standard to achieve robust RF performance.

The high speed, long range capabilities of FD-6100 allow for high quality wireless video and telemetry communications.


Product Detail

Features

●Fluid self-healing mesh optimized for mobile applications

●Data Rates: 30Mbps(Uplink+Downlink)

●l Tri-band frequency(800Mhz/1.4Ghz/2.4Ghz selectable via software)

●OEM (bare board) format for platform integration.

● Long range LOS for UAV: 10km(Air to ground)

●Adjustable Total Output Power (25dBm)

● Up to 32nodes on a single frequency MESH network

● RF Power Adjustable Range: -40dbm~+25dBm

●Mesh, Point-to-Multipoint, Point-to-Point

● Simultaneous IP & Serial Data

● Working Temp (-40°C to +80°C)

● 128/256-bit AES Encryption

●Configuration, management and real time topology via Web UI

●Locally and Remotely upgrade firmware

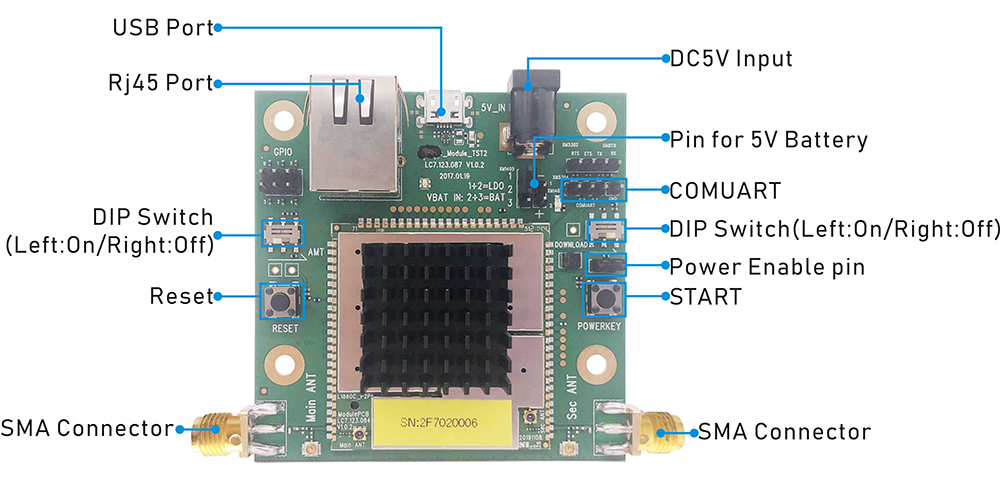

Mesh Radio Module

●Low latency (under 25mS) for critical applications

● Transparent IP network allows connection of any general IP device

● Weighing just 50g, consuming only 5W of input power

● OEM (bare board) format for platform integration.

Application

FD-6100 enables self-forming and self-healing mesh networks. Mesh networks improve robustness, extend range and simplify collaborative communication. It is ideal for size and weight critical UxV applications, offering the SWaP of a bare-board solution for platform and system integration.

ugv (1)

●Ideal for use for wide area coverage & multi-hop, mobile applications such as robotics

●Tactical communications

●Unmanned land vehicles wireless video transmission

Specification

GENERAL
TECHNOLOGY MESH base on TD-LTE Wireless technology standard
ENCRYPTION ZUC/SNOW3G/AES(128) OptionalLayer-2
DATA RATE 30Mbps(Uplink and Downlink)
RANGE 10km(Air to ground)500m-3km(NLOS Ground to ground)
CAPACITY 16nodes
POWER 23dBm±2 (2w or 10w on request)
LATENCY One Hop Transmission≤30ms
MODULATION QPSK, 16QAM, 64QAM
ANTI-JAM Automatically Cross-Band frequency hopping
BANDWIDTH 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
POWER CONSUMPTION 5Watts
POWER INPUT DC12V
SENSITIVITY
2.4GHZ 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
FREQUENCY BAND
2.4Ghz 2401.5-2481.5 MHz
1.4Ghz 1427.9-1447.9MHz
800Mhz 806-826 MHz
COMUART
Electrical Level 2.85V voltage domain and compatible with 3V/3.3V level
Control Data TTL mode
Baud rate 115200bps
Transmission Mode Pass-through mode
Priority level Higher priority than the network portWhen the signal transmission
is crowed, the control data will be transmitted in priority
Note:1. The data transmitting and receiving is broadcast in the network.
After successful networking, each FD-6100 node can receive serial data.
2. If you want to distinguish between sending, receiving and control, you need to
define the format yourself
MECHANICAL
Temperature -40℃~+80℃
Weight 50grams
Dimension 7.8*10.8*2cm
Stability MTBF≥10000hr
INTERFACES
RF 2 x SMA
ETHERNET 1xEthernet
COMUART 1x COMUART
POWER DC INPUT
INDICATOR Tri-COLOR LED
