ʻO ke kahua hoʻokumu ʻo Tactical Airborne Adhoc Radios
Hoʻokomo wikiwiki, hana pūnaewele i kekona
●Ma nā pilikia pilikia, helu ʻia kēlā me kēia kekona. Kākoʻo ka U25 repeater i ka push-to-start no ka hoʻokumu ʻana i kahi pūnaewele kūʻokoʻa ma hope o ka hoʻohana ʻana i ka lekiō.
Pūnaehana Infrastructureless: ʻAʻohe o nā loulou IP, Flexible Topology Networking
●Hoʻohana ka mea hoʻopuka hou i ka ʻenehana hoʻohui uʻi e hana wikiwiki i nā ʻupena narrowband multi-hop ma o ka hoʻopili cascading, me ka ʻole o nā loulou IP e like me ka fiber optic a me ka microwave.

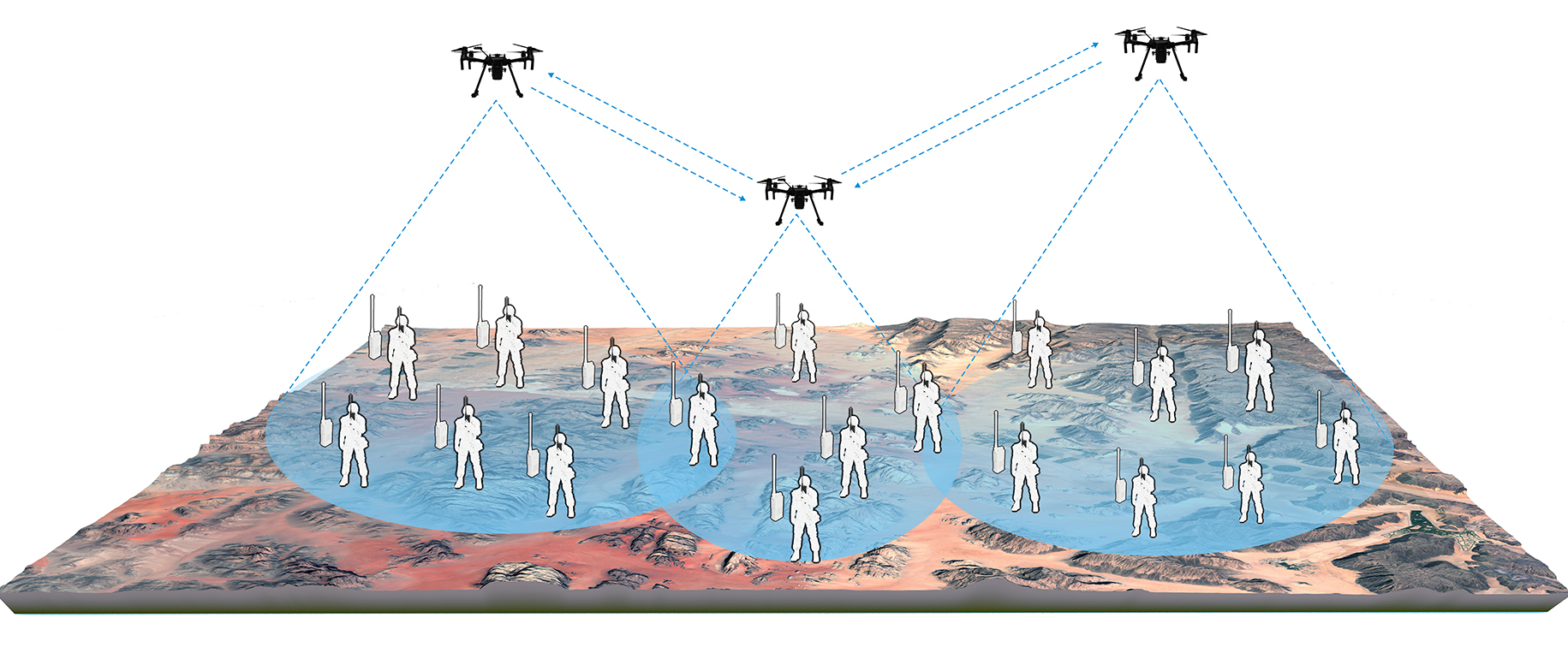

Hoʻonui i nā pūnaewele ma waho-Line-Of-Sight
●I ka UAV lawe U25 lele i ka lewa me 100 mika kiʻekiʻe kukū, hiki i ka uʻi kamaʻilio ke uhi 15-25km laulā.

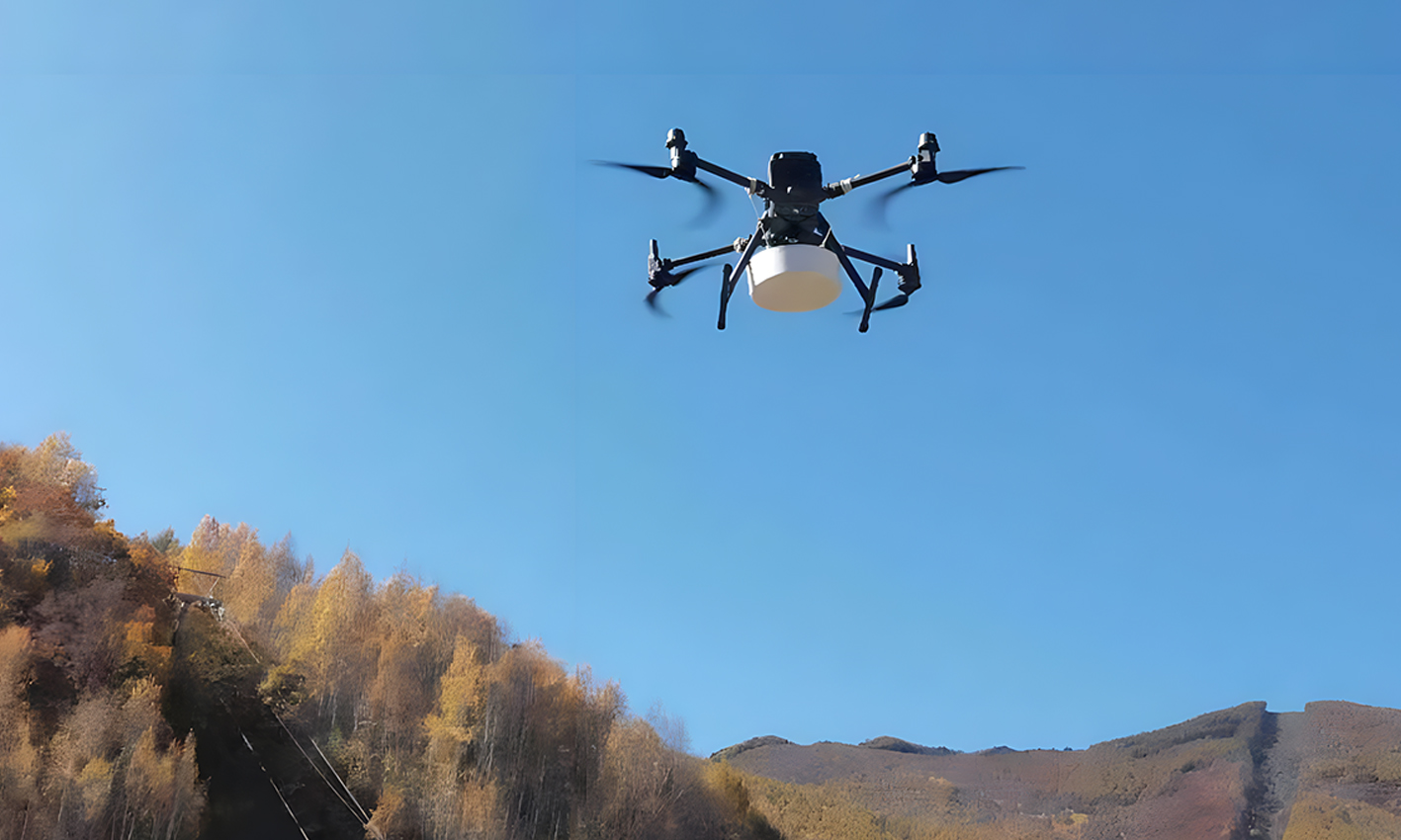

Hoohui Lewa
●Defensor-U25 he kahua kahua kahua i hoʻohui ʻia no ke kau ʻana ma luna o nā UAV.
●Hoʻokuʻu ʻia e nā fopes e kau ana ʻehā, paʻa i ka nui, a māmā.
● Hoʻolako ʻia me kahi antenna kuhikuhi 3dBi kūikawā a me kahi pākahi lithium kūloko (10hours ola pākaukau).
● Hāʻawi i ka uhi ākea me ka 160-degree angle directional antenna no ka 6-8hours hana mau.

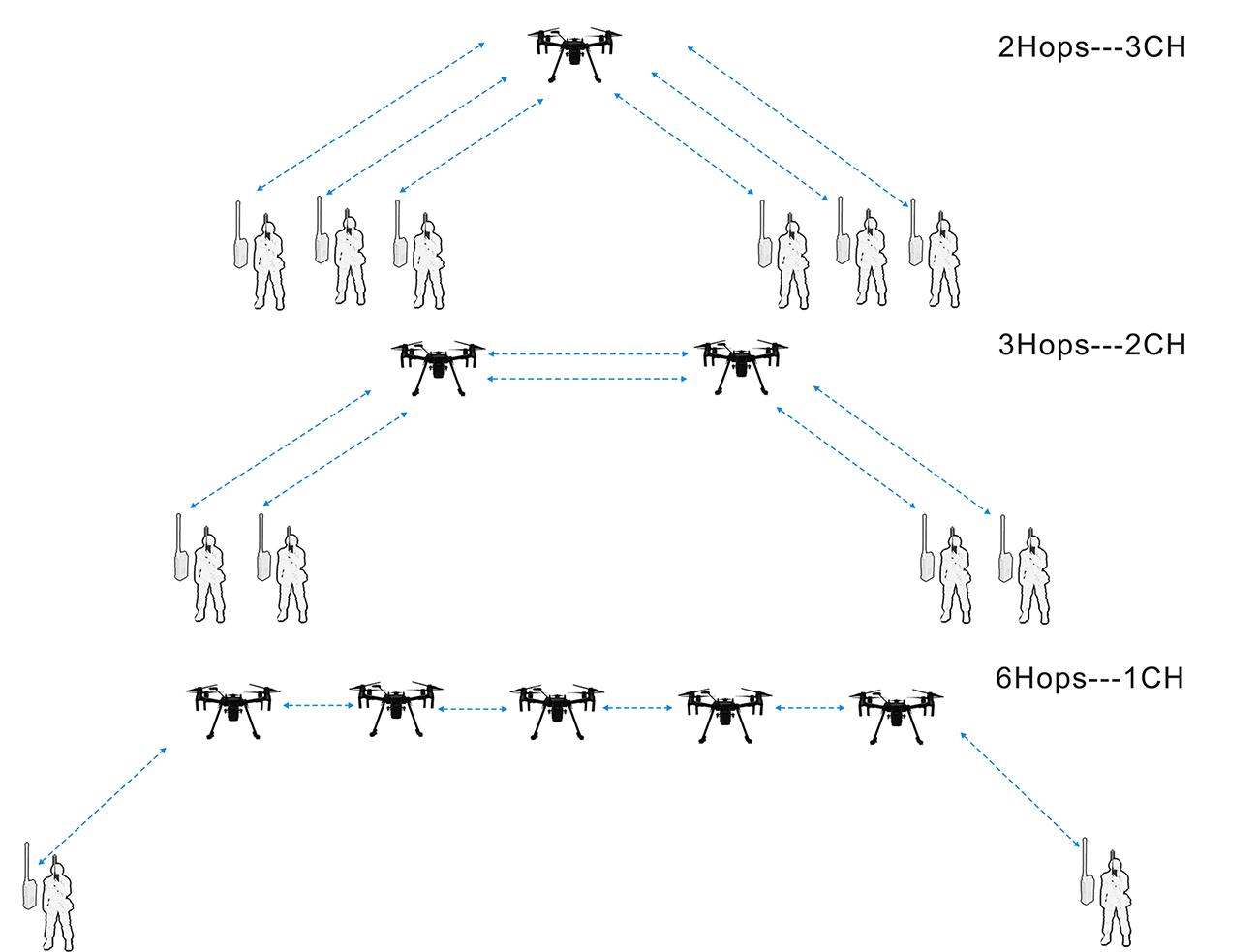

Kākoʻo ʻo Single Frequency i nā 1-3Channels
●He nui nā ʻāpana U25 a i ʻole kekahi mau ʻāpana U25 a me nā ʻano kumu kumu ʻē aʻe o ka ʻohana Defensor e hana i kahi pūnaewele MESH narrowband multi-hop.
● 2 hops 3-kanal pūnaewele ad-hoc
●6 hops 1 kanal ad-hoc network
●3 hop 2 kanal ad-hoc network
Hoʻohui ʻia ʻo Cross Platform
● U25 mea he SWaP-optimized solution leverage i ka kahua-i hooiaio, lako lako anuu o ka Defensor ohana o ka handheld, solar powered base station, vehicular radio station and on-site portable command system to extend the emergency voice communication connectivity to the lewa.
Mākaʻikaʻi mamao, E mālama i ke kūlana pūnaewele i ʻike mau ʻia
● Hiki ke nānā ʻia ka pūnaewele ad-hoc i hana ʻia e ka Defensor-U25 e ke kauoha lawe lima ma ka pūnaewele a me ke kikowaena kikowaena Defensor-T9. ʻO ke kūlana pūnaewele pūnaewele, ka pae pākaukau a me ka ikaika hōʻailona.
●ke hoʻopau ka pūnaewele lehulehu, hoʻokumu koke ʻo IWAVE narrowband MESH i kahi pūnaewele kamaʻilio hilinaʻi e hōʻoia i ka pilina paʻa no ka hoʻopakele ulia pōpilikia, palekana lehulehu, nā hanana nui, pane pilikia, hana kahua, a me nā mea hou aku.
● Hāʻawi ia i nā kamaʻilio ma ka neʻe ʻana no ka hoʻololi ʻana i ka ʻoihana pūnaewele e kākoʻo maʻalahi i ka wikiwiki o ka paepae honua a me ka wikiwiki o ka paepae ea e kākoʻo maikaʻi i nā mea hoʻohana i hoʻolaha ʻia i loko o nā hoʻokumu ʻāina paʻa loa.
| ʻO ke kahua kahua kahua lekiō ʻo Adhoc Airborne Airborne (Defensor-U25) | |||
| Generala | Mea hoʻouna | ||
| Ka pinepine | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz | Mana RF | 2/5/10/15/20/25W (hiki ke hoʻololi ʻia e ka lako polokalamu) |
| Kaha Kanal | 32 | 4FSK Digital Modulation | ʻIkepili 12.5kHz wale nō: 7K60FXD 12.5kHz ʻIkepili&Leo: 7K60FXE |
| Kawāwae Kanal | 12.5khz | Hoʻokuʻu ʻia/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Voltage Hana | 12V(helu ʻia) | Palekana Modulation | ±2.5kHz @ 12.5 kHz ± 5.0kHz @ 25 kHz |
| Paʻa pinepine | ±1.5ppm | Mana Kanal Pili | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | ||
| Anana | φ253*90mm | ||
| Kaumaha | 1.5kg(3.3lb) | Kaiapuni | |
| Batri | 6000mAh Li-ion pākaukau (maʻamau) | Ka Mahana Hana | -20°C ~ +55°C |
| ʻO ke ola pākaukau me ka pākaukau maʻamau | 10 hola (RT, mana RF kiʻekiʻe) | Ka Mahana Waihona | -40°C ~ +85°C |
| Mea loaa | |||
| ʻO ka ʻike | -120dBm/BER5% | GPS | |
| koho koho | 60dB@12.5KHz/Digital | TTFF(Ka manawa e hoʻoponopono mua) hoʻomaka anu | <1 minuke |
| Intermodulation TIA-603 ETSI | 65dB @ (kikohoʻe) | TTFF (Ka manawa e hoʻoponopono mua) hoʻomaka wela | <20s |
| Hōʻole Hoʻopunipuni | 70dB(kikohoʻe) | Pololei Horizontal | <5 mika |
| Hana ʻia ʻo Spurious Emission | -57dBm | Kākoʻo hoʻonohonoho | GPS/BDS |
