Handheld PTT MESH Radio Base Station
Long Range Communication
● TS1 is developed and designed based on ad-hoc network supports 6hops.

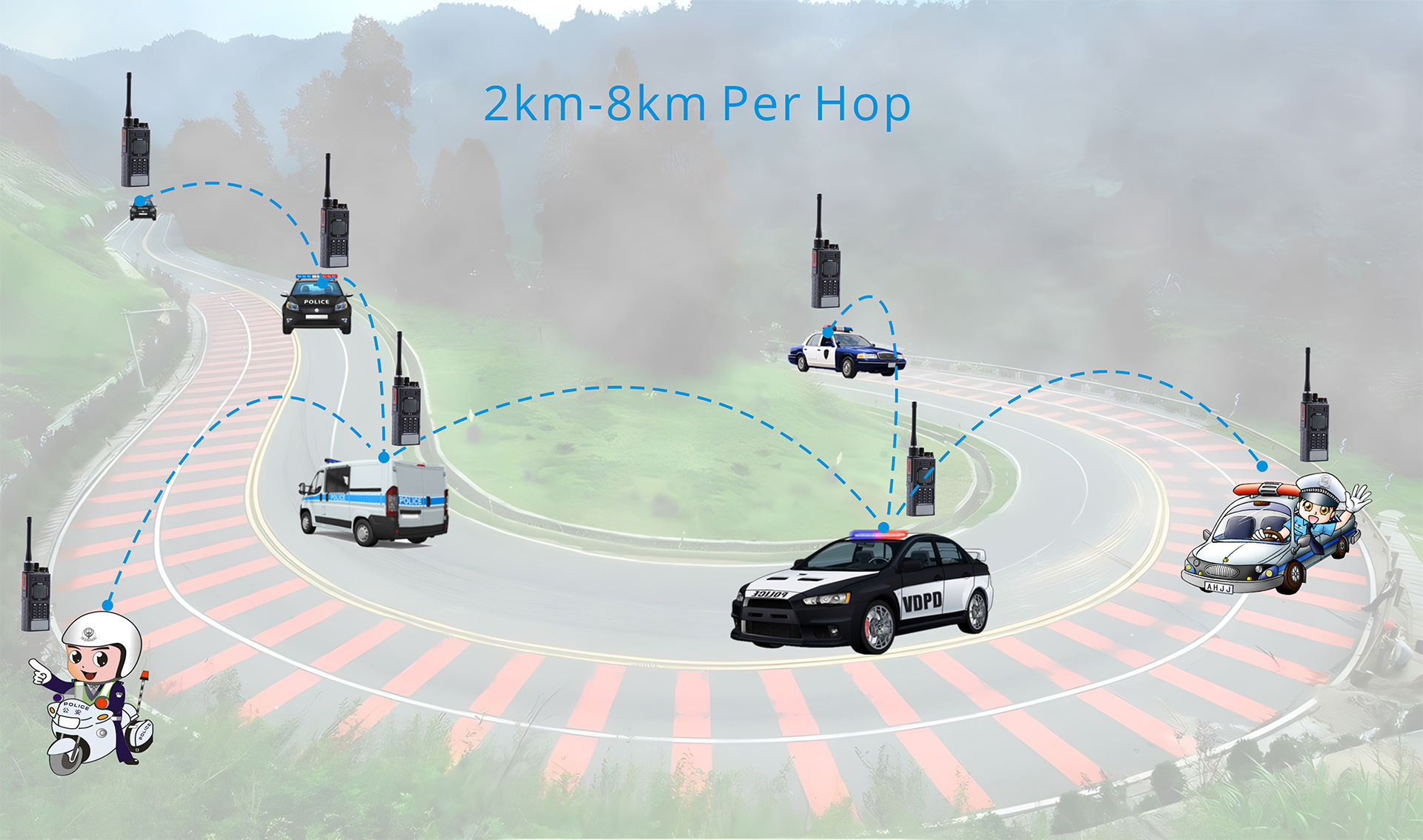

● Several people hold TS1 manet radios to build a multi hop communication system and each hop can reach 2-8km.

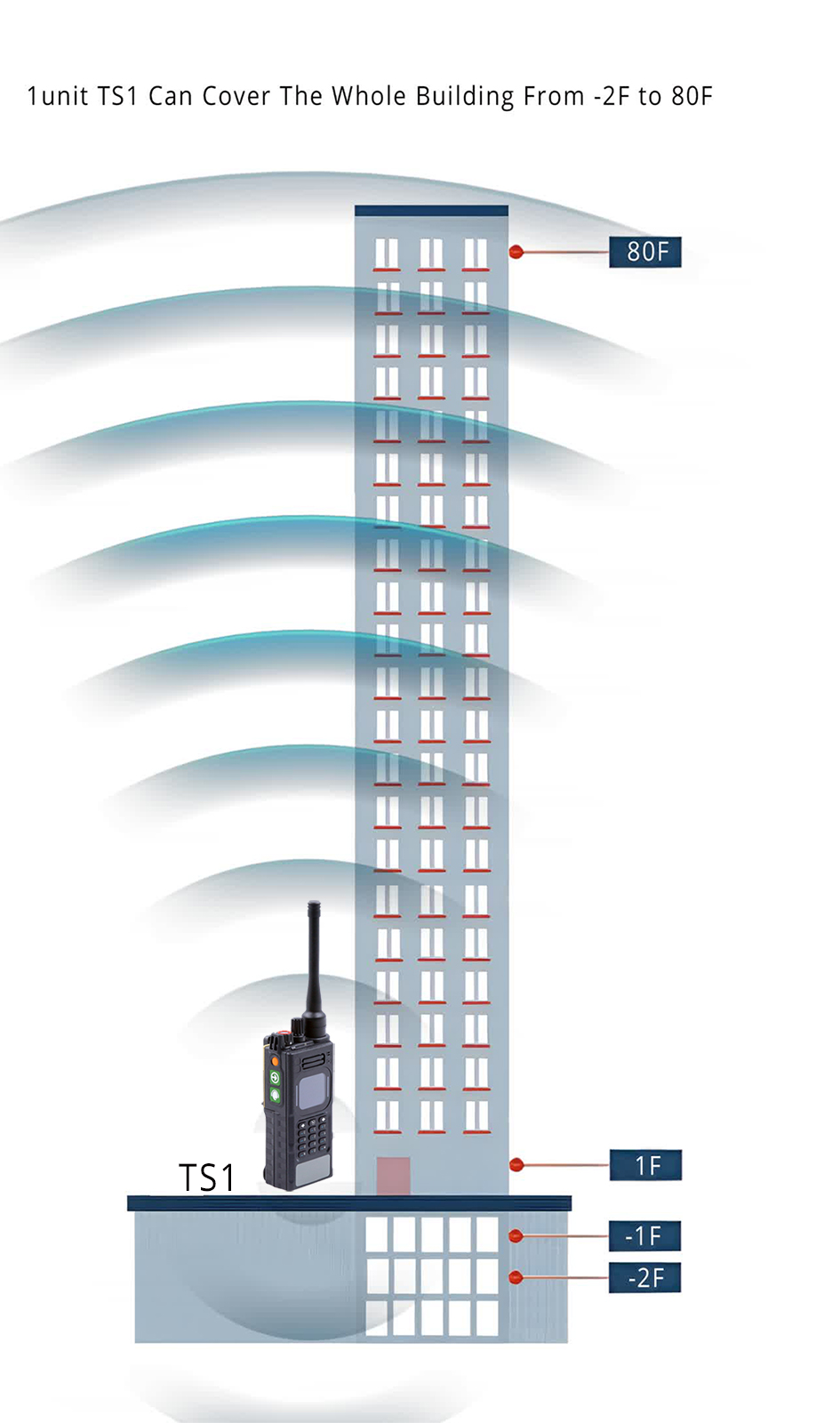

● One unit TS1 was put on 1F, the whole building from -2F to 80F can be covered(except the elevator cabin).
Cross Platform Connectivity
● IWAVE provide the whole manet radios solution including on-site command and dispatching center, solar powered base station, radio terminals, airborne MANET base station and manpack base stations to meet different application scenarios.

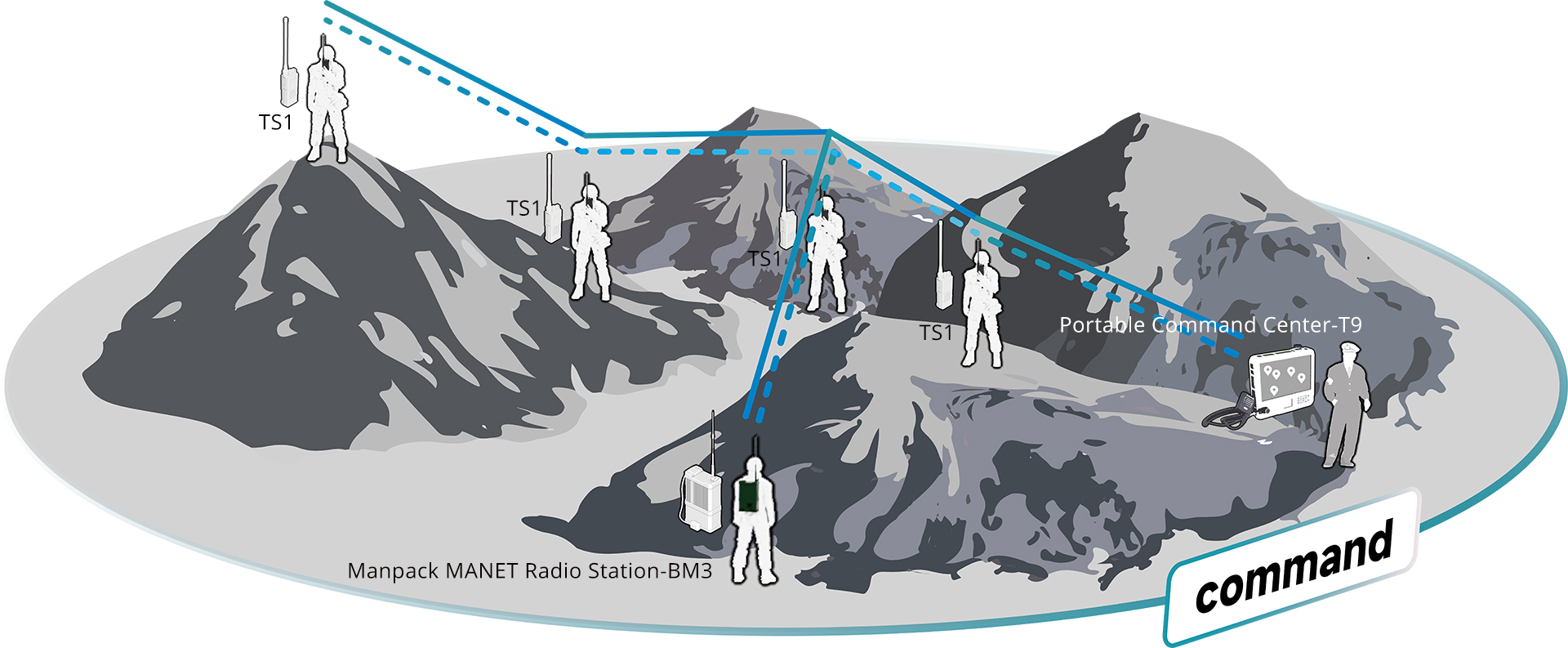

● TS1 can smoothly connect with all present IWAVE's MANET radios, command center and base stations which allows the end users on land to automatically mesh with manned and unmanned vehicles, UAVs, maritime assets and infrastructure nodes to create a robust connectivity.
How Does PTT Mesh Radio Work?
●Multiple TS1 wireless communicate with each other creating a temporary and multi hop wireless communication network.
● Each TS1 works as base station, repeater and radio terminal transmitting and repeating voice/data from one device to another until it reaches the destination.
● Users press the Push-to-Talk button, then voice or data will be sent through the ad-hoc network using the most efficient available route.
● The mesh network is highly reliable because if one path is blocked or a device is out of range or offline, voice/data can be routed through an alternative path.
Ad-Hoc Repeater&Radio
●Self-organizing, decentralized and multi-hop network formed by many nodes with transceiver capabilities that establish linkages autonomously and wirelessly;
●The TS1 node number is not limited, users can use as many TS1 as they need.
●Dynamic network, freely join or leave on the move; network topology changes
accordingly
●2 hops 2 channels, 4 hop 1 channel via single carrier(12.5kHz) (1Hop=1time relay; every channel supports individual and group call, all call, priority interrupt)
●2H3C,3H2C,6H1C via single carrier(25kHz)
●Time delay less than 30ms in single hop
Ad-hoc Network Radio
●Clock synchronisation with network and GPS time
●Automatically select base station signal strength
●Seamless roaming
●Supports individual and group call, all call, priority interrupt
●2-4 traffic channels via single carrier(12.5kHz)
●2-6 traffic channels via single carrier (25kHz)
Personal Safety
●Man down
●Emergency button for alert and ambulance listening
●lnitiate a call to the command center
●Showing caller's distance and direction during a call
●Indoor search and location of missing radio
●20W high power option can be activated on request in emergency circumstances
●For tactical response teams, smooth and reliable communication is essential.

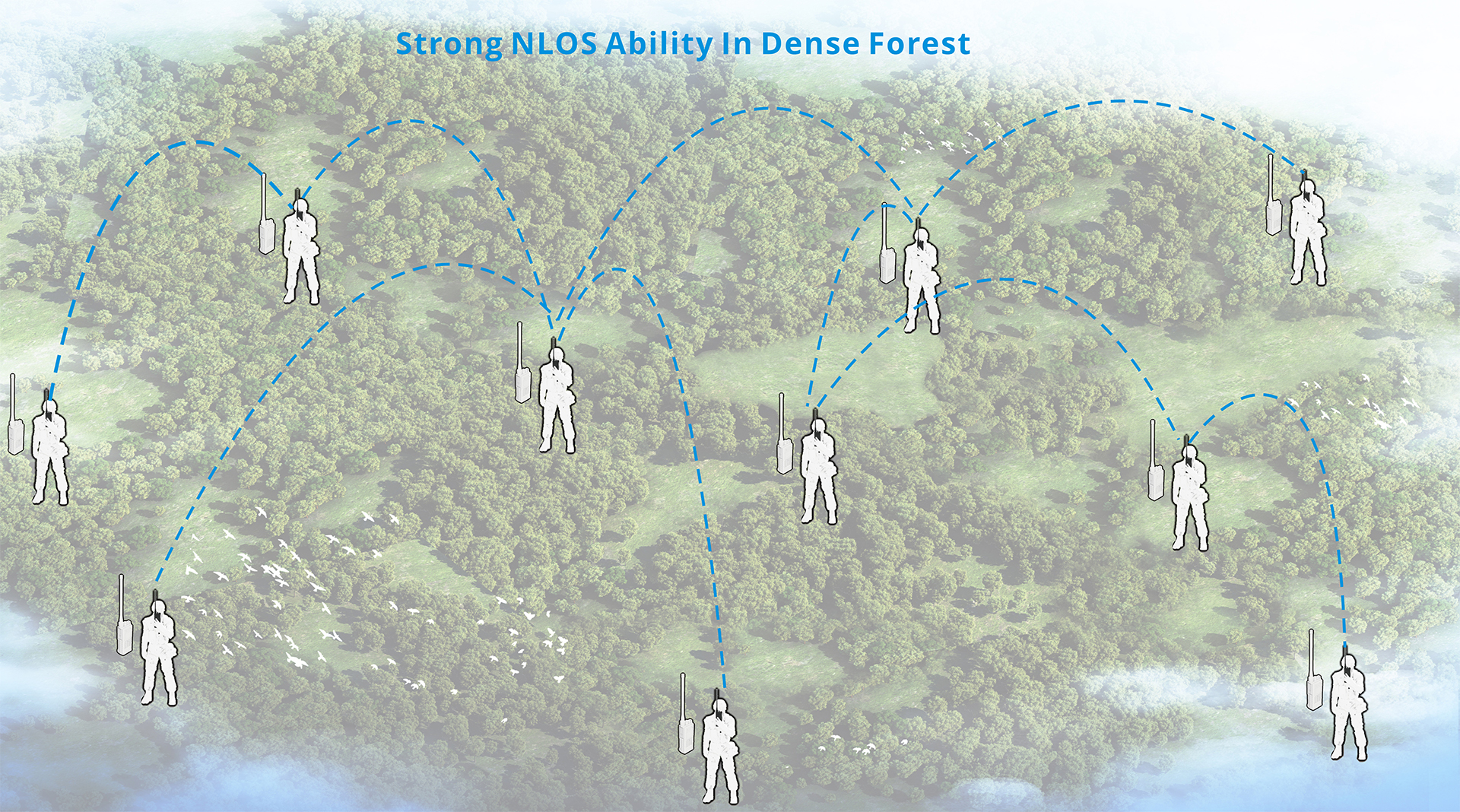

●When major incidents happened, teams have to operate in challenging environments such as mountainous, forest,underground parking lots, tunnels, indoors and basements of urban buildings where DMR/LMR radios or cellular coverage are absent, users take TS1 can quickly power on and automatically communicate with each other for a ultra longer range than the traditional analogue or digital radios.
| Handheld PTT MESH Radio Base Station(Defensor-TS1) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/4/8/15/25(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 11.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension | 144*60*40mm(without antenna) | Audio Distortion | 5% |
| Weight | 560g | Environment | |
| Battery | 3200mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery | 31.3hours(120hours with IWAVE power bank) | Storage Temperature | -40°C ~ +85°C |
| Protection Grade | IP67 | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
