FHSS MIMO Digital IP Module Transmitter For Video And Telemetry Data

Model: FDM-6800

High-throughput, long-range 2×2 MIMO model meets the demands of advanced robotics platforms like Drones, UGVs and robotics.

●High Throughput: up to 100 Mbps

●Long Range: 20kilometers(LOS), 1-3km(NLOS)

●Low-SWaP for easy integration

●Easy Configuration using IWAVE management software or via AT or API command sets.

●Multi-band and Frequency Hopping Spread Sprectrum(≥300hops/s) for advanced inteference-avoidance

FDM-6800 adopts advanced IP star networking high speed hopping frequency technology(≥300hops/s), which ensure a robust video and telemetry data communication wireless IP link in complex jamming environments.
FDM-6800 works in 600MHz and 1.4GHz dual-frequency band simultaneously. Users could adjust its working frequency from 600Mhz(566-678Mhz) to 1.4Ghz(1420-1530Mhz) based on the RF environment.

This is the smallest, lightest, HD Video, IP data and Telemetry data Transmitter, 71x10x60mm, with a 100Mbps data rate uplink and downlink, weighing only 33grams!

The FDM-6800 modules can be configured easily using IWAVE management software or via AT or API command sets. The utilization of Frequency Hopping Spread Spectrum (FHSS) on the FDM-6800 make it ideal for applications in noisy, challenging environments.

Inquire

Product Detail

Features

Advanced Technologies for Dynamic Robotic Connectivity

•Multiple Bands and Wide Frequency Option: Our patented hybrid SDR technology enables a large family of multi-band radios. FDM-6800 is dual-band IP transmitter with 600Mhz and 1.4Ghz.
There are 222Mhz frequency range option enable users to select a suitable working frequency.
•Frequency Hopping Spread Sprectrum(FHSS): Adopts advanced high speed hopping frequency technology to achieve 300hops/s for inteference-avoidance in jamming environment.
•IP Star Networking: FDM-6800 supports both point-to-point and point-to-Mutiple-Point networking protocols, with a line-of-sight range up to 20 kilometers and non-line-of-signt up to 3km. It is well suited for dynamic robotic connectivity.
•One GCS to Multiple Units Unmanned Platform: In a point to multipoint configuration, FDM-6800 provides the ability to stream several high quality video from different unmanned platform to one GCS. And one GCS can control multiple units UAV/UGV/Robotics via FDM-6800's telemetry data.

Easy Network Management

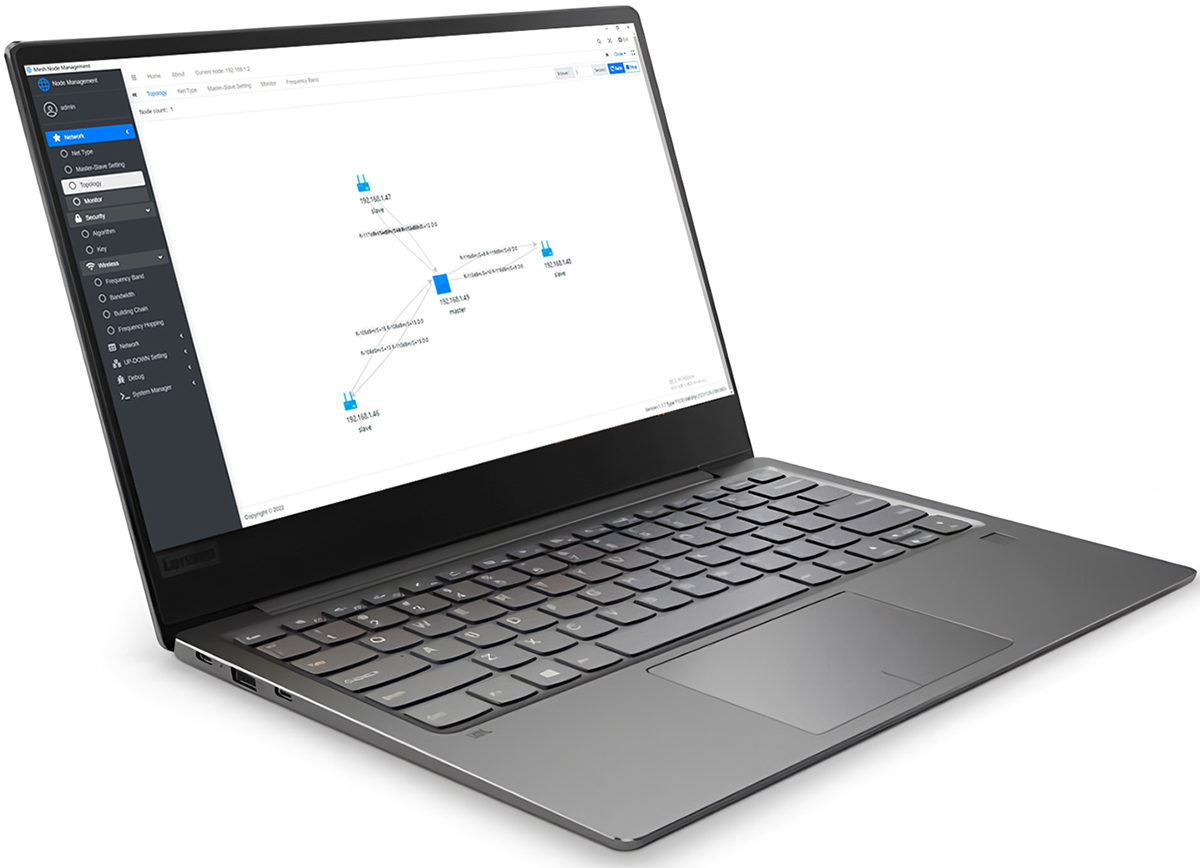

•The FDM-6800 IP module transmitter can be configured easily using IWAVE management software or via IWAVE’s simplified AT or API command sets.
•Users can get the unprecedented situational awareness via the SNR, RSSI, distance between nodes in real time.
• Adjust the working frequency band, turn on/off the FHSS function, modify the IP address of each node via the management software.
• With IWAVE AT command set document, users can configure key, frequency, bandwidth and get SNR value and query the firmware version, baud rate,etc.

Key Features
•Dual-band: 566-678Mhz(600Mhz) and 1420-1530Mhz(1.4Ghz)
•High throughput: up to 100 Mbps
•2X2 MIMO
•One master node supports 64 slave node
•SDR: Software Define Radio, the smallest mimo dual band IP radio in the world
•LOS 20km and NLOS 1-3km

Various Ports

Various Interfaces

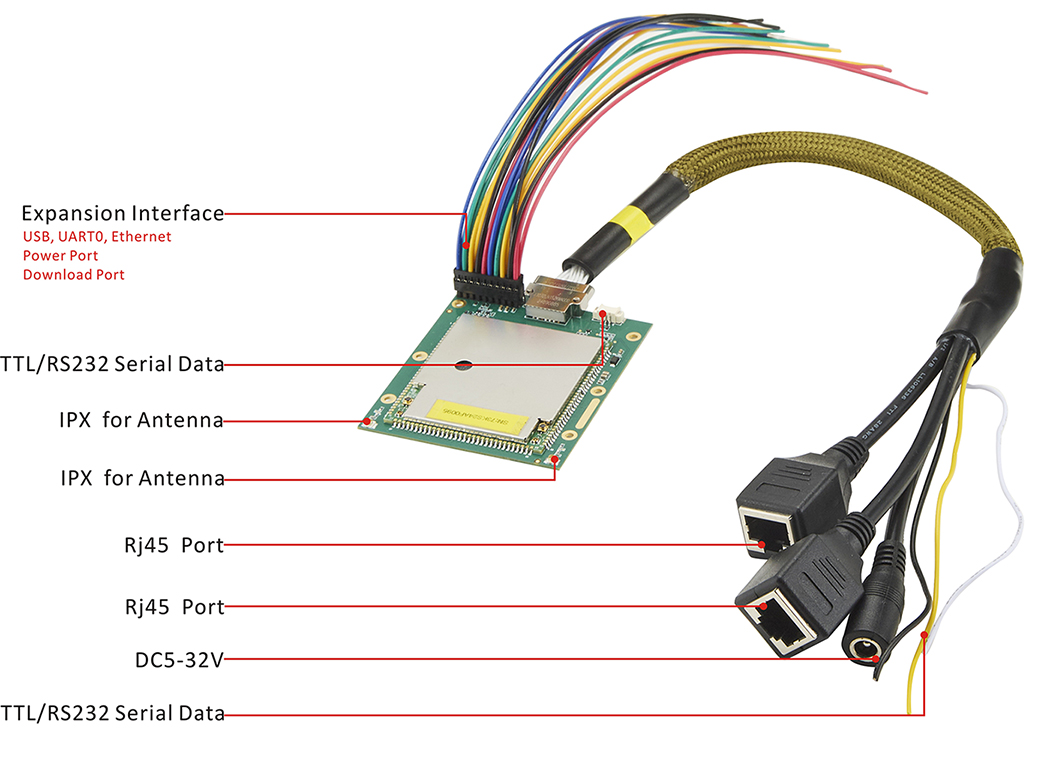

The rich interfaces enable users to connect various terminals.
• RJ45 ports: users can connect the IP camera, sensors, onboard microcomputers such as Linux/windows/Android...
• Serial port: It can connect with PTZ, flight control such as pixhawk
• USB: It can be used for debugging and AT commands sending or enumerate it as network port or AT command port.
• Expansion Port: It is 20pin port for uses to define more interface and single-chip microprocessor application, download port, power port, etc.

Application

The FDM-6800 IP transmitter module is a complete hardware and software solution that works directly out of the box.
It is a powerful patented mobile wireless broadband technology designed for mobile use cases.
Its innovative waveform provides a reliable, low-latency, high-throughput datalink over extremely long distances for dynamic robots. The built-in intelligence allows it to dynamically adapt to challenging RF scenarios while maintaining connectivity.

Specifications

GENERAL		WIRELESS
TECHNOLOGY	Star Network based on IWAVE proprietary time slot frame structure & waveform.	COMMUNICATION	1T1R1T2R2T2R
ENCRYPTION	ZUC/SNOW3G/AES(128) Optional Layer-2	DATA LINK	Full duplex communication
DATE RATE	Max 100Mbps(Uplink and Downlink)	UP AND DOWN RATIO	2D3U/3D2U/4D1U/1D4U
RANGE	200mw RF Power: 20km(Air to ground)	AUTOMATIC RECONSTRUCTION CHAIN	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
CAPACITY	64nodes	SENSITIVITY
MIMO	2x2 MIMO	1.4GHZ	20MHZ
POWER	23dBm±2 (2w, 5w or 10w on request)		10MHZ
LATENCY	End to end≤5ms-15ms		5MHZ
MODULATION	QPSK, 16QAM, 64QAM	600MHZ	20MHZ
ANTI-JAM	FHSS(Frequency Hop Spread Spectrum)		10MHZ
BANDWIDTH	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ
POWER CONSUMPTION	5Watts	FREQUENCY BAND
POWER INPUT	DC5-32V	1.4Ghz	1420Mhz-1530MHz
DIMENSION	716010mm	600Mhz	566Mhz-678Mhz
