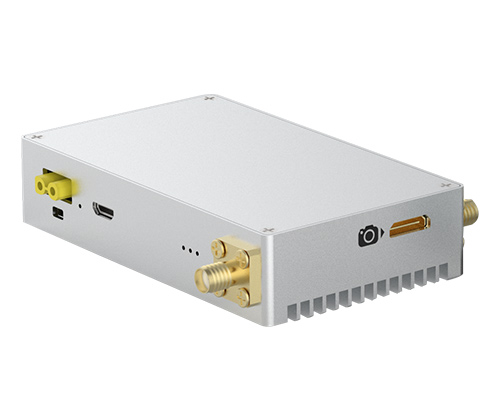

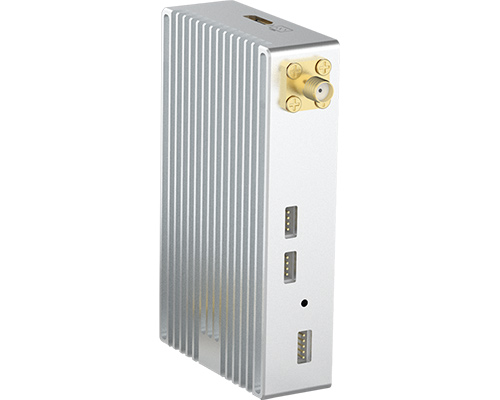

8km Long Range UAV HDMI Full HD Digital Image Transmission System 1080P60fps

Model: Model: FPS-8408

FPS-8408 is a 8km full hd digital image transmission system for drones that combines real-time Full HD video channel and telemetry into one convenient device. With a 1080p60 video streaming, it is ideal for drone downlink.

It utilizes TDD-COFDM technology and frequency-hopping spread spectrum(FHSS) to ensure stable wireless linking in urban and cluttered environment to ensure a stable wireless link.

Besides the video stream, FPM-8416S mini COFDM video transmitter also allows the flight control data to be transmitted up to 8km together with video stream. It works well with pixhawk, Mission planner and QGround.

Inquire

Product Detail

Features

Drone Communication + Video Processing & Analytics+ Embedded bi-directional data link for UAVs

Conductive anodizing craft improves the integrity of RF signals.

CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation.

➢ Frequency Option: 800Mhz,1.4Ghz
➢ Video Input Interface: HDMI and Ethernet
➢ Both 1400Mhz and 800Mhz have penetrate ability for barriers
➢ Support MAVLINK TELEMETRY
➢ Support 2T 2R
➢ 1* Serial Ports: Bi-directional Data Transmission
➢ 2* Antennas: Dual Tx antenna and Dual Rx antenna
➢ 3*100Mbps Ethernet port support TCP/UDP
➢ 1/4inch screw hole on Tx for fixing on UAV
➢ H.264 Video Compression
➢ Latency less than 50ms
➢ Baud Rate: 115200bps
➢ Mini size and Super light weight：Overall Dimension: 5.7 x 5.55 x 1.57 CM，Weight: 65g

Various Ports

FPS-8408 HD Image Transmission System is equipped with HDMI, two LAN ports and one bi-directional serial port.

The mini HDMI and LAN port enable uav have two types camera option.

The serial port support mavlink telemetry for pixhawk. With it you can control the UAV on ground with a living hd video stream.

Application

Drone Video Transmitter is widely applied to the fields of aerial emergency and disaster relief, fire-fighting command, and electric power inspection, transporting, and receives many good comments of customers.

FPS-8408 is especially have a good performance in following Scenarios.

In the suburbs where communication is not good, it is used to transport coal and mineral materials.

It is an ideal choice for drone emergency fire rescue.

When a natural disaster occurs, it can be applied to ensure emergency communication.

Specification

Frequency	800Mhz	806~826 MHz
	1.4Ghz	1428~1448 MHz
Bandwidth	8MHz
RF Power	0.4Watt(Bi-Amp, 0.4watt Peak Power of each power amplifier)
Transmit Range	800Mhz: 7km
	1400Mhz: 8km
Transmit Rate	6Mbps (Video Stream, Ethernet Signal and serial data share)
	The best video stream: 2.5Mbps
Baud Rate	115200bps(Adjustable)
Rx Sensitivity	-104/-99dbm
Fault Tolerance Algorithm	Wireless baseband FEC forward error correction
End to End Latency	50-80ms for 1080P60/720P60 video encoding and decoding
Link Rebuild Time	<1s
Modulation	Uplink QNSK/Downlink QNSK
Encryption	AES128
Start Time	15s
Power	DC-12V (7～18V)
Interface	Interfaces on Tx and Rx are same
	Video input/Output: Ethernet×3
	Power Input Interface×1
	Antenna Interface: SMA×2
	Serial×1: (Voltage:+-13V(RS232), 0~3.3V(TTL)
Indicators	Power
	Ethernet Status Indicator
	Wireless Connection Setup Indicator x 3
Power Consumption	Tx: 4W(Max)
	Rx: 3W
Temperature	Working: -40 ~+ 85℃
	Storage: -55 ~+100℃
Dimension	Tx/Rx: 57 x 55.5 x 15.7 mm
Weight	Tx/Rx: 65g
Design	CNC Technology
	Double Aluminum Alloy Shell
	Conductive anodizing craft
