64Node MIMO Mesh Module For Unmanned System UAV UGV Sending Video Data

Model: FD-7800

FD-7800 2×2 MIMO OEM MESH Module is a software defined radio, which is ideal suited for a range of manned and unmanned system applications to mobile transmission of IP, video and full duplex control data.

Employing IWAVE’s proprietary waveform featuring high-efficiency dynamic routing algorithm, the mesh network successfully connected 64 nodes with high data rate throughput, high sensitivity, low latency, and strong anti-interference characteristics.

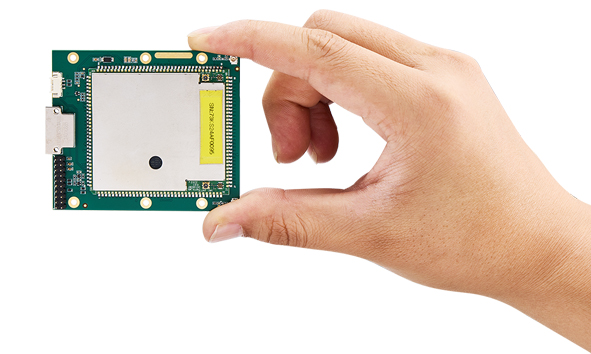

FD-7800 is an ultra-light(33g), ultra-compact(72*60*10mm) software defined IP mesh radio in an OEM (bare board) format for platform integration.

Weighing just 33g, consuming only 3W of input power but delivering 200mW of output power, the FD-7800 is ideal for size and weight critical UxV applications, offering the 100Mbps data rate, 64nodes wireless connection and point to point 1-3km nlos communication.

Inquire

Product Detail

Features

• SDR: Software Define Radio, the smallest mimo dual band mesh radio in the world

• Max 40Mhz Bandwidth: Adopts LTE-A's CA technology (Carrier aggregation): dual carriers and support a maximum operating bandwidth of 40MHz: 2×20MHz.

• Strong Anti-jamming Ability: dual band 600Mhz(566-678Mhz) and 1.4Ghz(1420-1530Mhz), in total 222Mhz frequency option to avoid the jamming frequency point.

• FHSS: Perform the frequency hopping and select an optimal frequency point based on RSRP, SNR, and SER.

• 100Mbps Thoughput: Uplink and downlink 100Mbps shared by the 64nodes

• Strong NLOS Ability: None line of sight 1-3km ground to ground communication distance.

• 10km Communication Distance: 10km air to ground LOS communication range between aircraft to GCS.

Easy Management

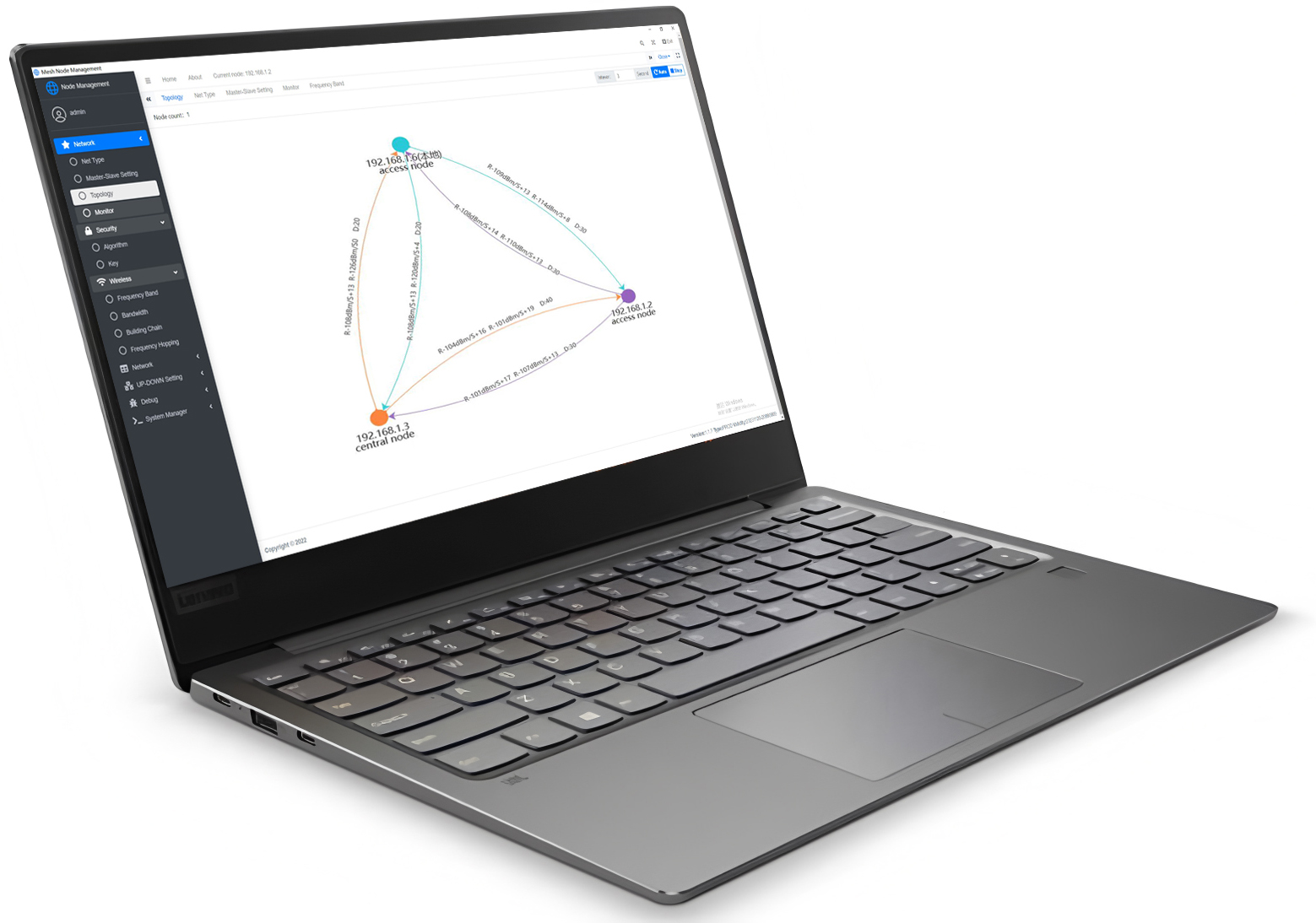

• Manage all the nodes and monitoring the real time topology on the management software.
• SNR, RSSI, distance between nodes will be dynamically displayed on the topoloty.
• IWAVE will provide API document and technical support for third-party unmanned platform integration.
• Users can adjust the working frequency band, turn on/off the FHSS function, modify the IP address of each node via the management software.
• With IWAVE AT command set document, users can configure key, frequency, bandwidth and get SNR value and query the firmware version, baud rate,etc.

Various Ports

Various Interfaces
The rich interfaces enable users to connect various terminals.

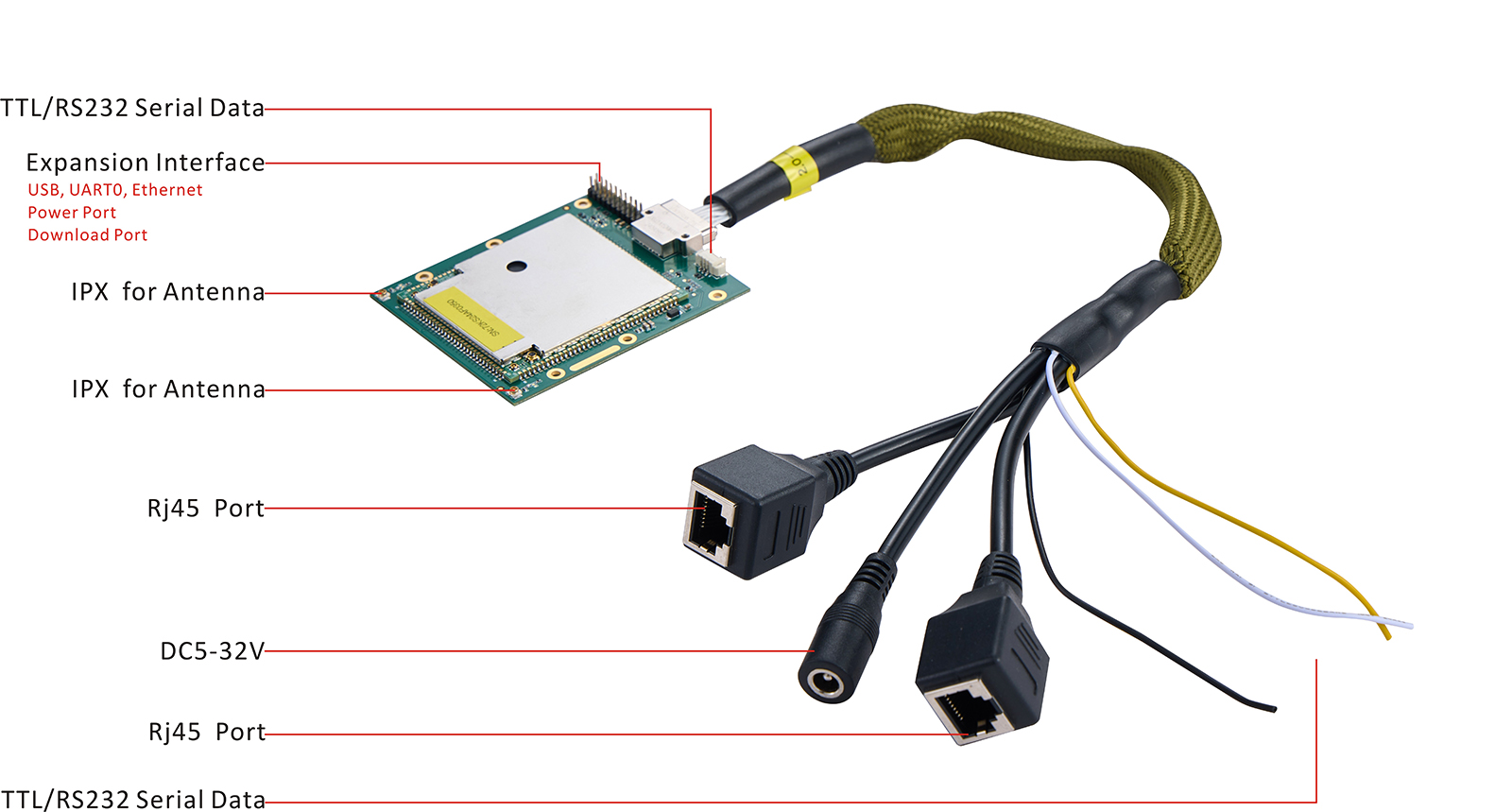

• RJ45 ports: users can connect the IP camera, sensors, onboard microcomputers such as Linux/windows/Android...
• Serial port: It can connect with PTZ, flight control such as pixhawk
• USB: It can be used for debugging and AT commands sending or enumerate it as network port or AT command port.
• Expansion Port: It is 20pin port for uses to define more interface and single-chip microprocessor application, download port, power port, etc.

Application

The FD-7800 measures only 72x60x10mm and weighs only 33g. With its small form factor and designed for jamming environmental resistance, the FD-7800 is suitable for installation as a mobile site system, employed in terrestrial, airborne and maritime environments such as the mini uav and tiny robot or other space limited unmanned system.
FD-7800 has a wide input voltage range of 5 to 32V and consumes just 5W of power, ideal for extended battery life in power-critical unmanned vehicle application.

Specifications

GENERAL		WIRELESS
TECHNOLOGY	MESH based on IWAVE proprietary time slot frame structure & waveform.	COMMUNICATION	1T1R1T2R2T2R
ENCRYPTION	ZUC/SNOW3G/AES(128) Optional Layer-2	DATA LINK	Full duplex communication
DATE RATE	Max 120Mbps(Uplink and Downlink)	UP AND DOWN RATIO	2D3U/3D2U/4D1U/1D4U
RANGE	200mw RF Power: 10km(Air to ground)	AUTOMATIC RECONSTRUCTION CHAIN	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
CAPACITY	32nodes/64nodes	SENSITIVITY
MIMO	2x2 MIMO	1.4GHZ	20MHZ
POWER	23dBm±2 (2w, 5w or 10w on request)		10MHZ
LATENCY	End to end≤5ms-15ms		5MHZ
MODULATION	QPSK, 16QAM, 64QAM	600MHZ	20MHZ
ANTI-JAM	FHSS(Frequency Hop Spread Spectrum)		10MHZ
BANDWIDTH	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ
POWER CONSUMPTION	5Watts	FREQUENCY BAND
POWER INPUT	DC5-32V	1.4Ghz	1420Mhz-1530MHz
DIMENSION	726010mm	600Mhz	566Mhz-678Mhz
